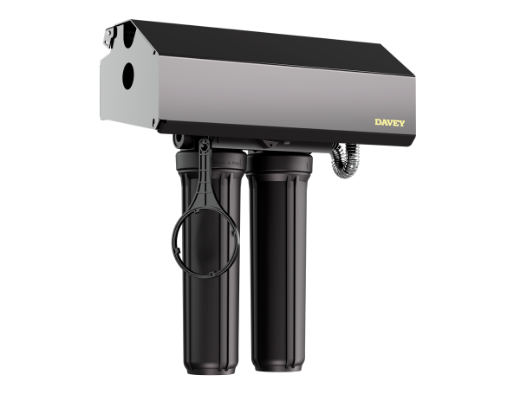

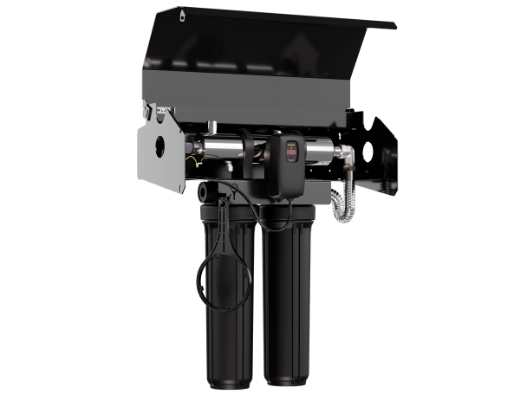

Davey AquaShield 3 stage UV Smart System with 20 Micron Pleated & 1 Micron PolySpun Cartridges & Cover

$2,099.00 Inc. GST

| Be the first to review this product

Davey AquaShield 3 stage UV Smart System

Availability: Out of Stock

Brand: Davey Microlene

SKU: KMCS-TK

increase decrease

Overview
Specifications
Attachments
Contact Us

Davey AquaShield 3 stage UV
Continuous clean, safe and fresh water
“For effective disinfection and filtration of your rain, bore and surface water, go UV. The NEW hardworking, Smart and Xtra Smart†3-Stage UV Systems are relentless in removing the unwanted, down to microscopic detail. What remains is crystal clear water, free from chemical taste and smell. As fresh as it gets. ”

Smart 3 Stage UV System features:

Fully RCM and Watermark certified
Supplied pre-assembled, saving installation time
High maximum operating pressure 827kPa (120 psi), and single manifold heads meaning no potential leaks between heads
316L stainless steel, axial flow chambers allow for optimum efficiency plus lamp and sleeve service without the need to drain the water
10,000 hour lamps - the longest residential lamp life on the market

Reverse flow capability allows for install versatility

SPARE PARTS & OPTION
Part code	Description
MCS-C	Cover
KMCS	Complete unit with filter cartridges
20PP20J	Poly pleated 20 micron rated cartridge (housing 1)
1PS20J	Poly spun 1 micron rated cartridge (housing 2)
MC-HOLP	High output UV lamp (O-ring included)
MC-HOSL	Quartz sleeve (O-ring included)
MCS-CONT	MCS controller
MC-CONT-PC	Controller power cord - IEC x AUS/NZ 3 Pin male
DM130033	Temperature Relief Valve - Thermal bleed valve activates when water temperature exceeds 32-35°C
DM160018	Replacement Dual Cap and twin housing assembly
DM310177	Filter housing replacement O-Ring
WFH45	Replacement filter housing spanner
DM310039	Replacement sleeve spring

Note: Keyed technology (lamp key) is not used on the MCS/KMCS Keys found with new lamps can be discarded. Keys are only used with the MCXS/KMCXS Xtra Smart Controller

ELECTRICAL DATA
Supply Voltage	90-265V ~
Supply frequency	50-60Hz
Power (Total)	57W
Phase	1
Lamp	45W
Max input current	0.24A
Max output current	800mA

Water quality is extremely important for optimum UV performance. Maximum recommended parameters are as follows:

WATER QUALITY
Hardness	120 mg/L – if hardness level is 120 mg/l or slightly below the quartz sleeve must be cleaned periodically in order to ensure efficient UV penetration; if above the water must be softened.
Iron (Fe)	<0.3 ppm (0.3mg/l)
Manganese (Mn)	<0.5 ppm (0.5mg/l)
Turbidity	<1 NTU
Tannins (organics)	<0.1 ppm (0.1mg/l)
UVT (transmittance)	>85% (Please contact Davey if water has a UVT that is less than 80% for pre-treatment recommendations)

UV DISINFECTION SYSTEM
Model	MCS/MCXS
Flow Rate (@ 16 mJ/cm2 @ 95% UVT)	114 L/min
Flow Rate (@24.2 mJ/cm2 @ 95% UVT)	70 l/min
Flow Rate (@ 30 mJ/cm2 @ 95% UVT)	56.8 L/min
Flow Rate (@ 40 mJ/cm2 @ 95% UVT)	45.4 L/min

NOTE: Flow rates are based on flow velocity of 8.2 ft/sec (2.5 m/sec), flow rate limited to 84 L/min for 1″ port before significant pressure drop is realised.

Products specifications

Attribute name	Attribute value
Special Freight	Bulky

Product Files

KMCS.pdf
